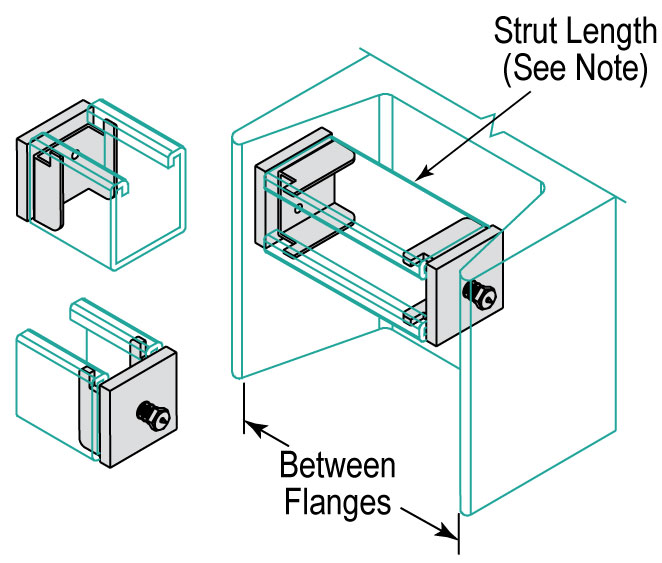

Part No. Wt. lbs Max In. Height Design Load lbs G2785EG 0.72 1 5/8" 3 3/8" 2,000 G2786EG 0.79 3 1/4" 5" 2,000 G2787EG 1.26 6 1/2" 8 1/4" 2,000 * Design load when installed as intended, to be used in pairs only

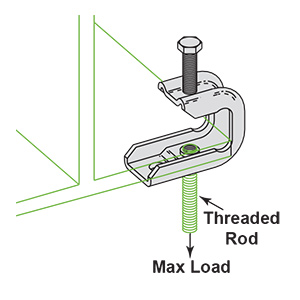

Max Rec. Load Wt. Each lbs. kN lbs. kg 800 (3.56) .69 (.31) *for 1 5/8” channel

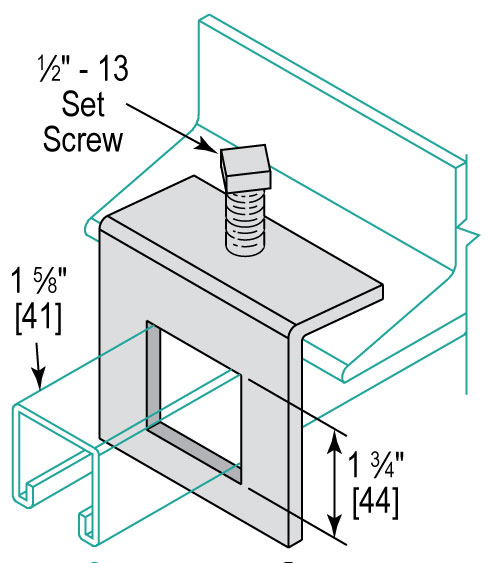

Set Screw Max. Flange Thickness Max. Rec. Load Wt. Each lbs kN lbs kg 1/2-13 5/8 (15.88) 900* (4.00) 1.07 (.49) * Max loads when used in pairs.

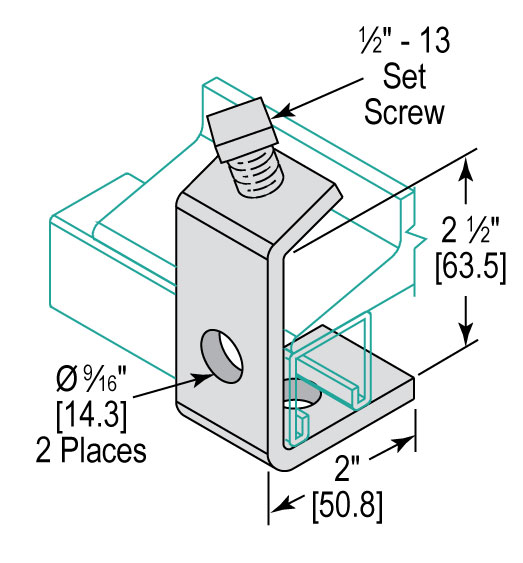

Part No. Wt - lbs Material Thickness in (mm) Design Load lbs (kN) G1271SEG 0.91 3/8″ (9.5) 1000 (4.45) when used in pairs

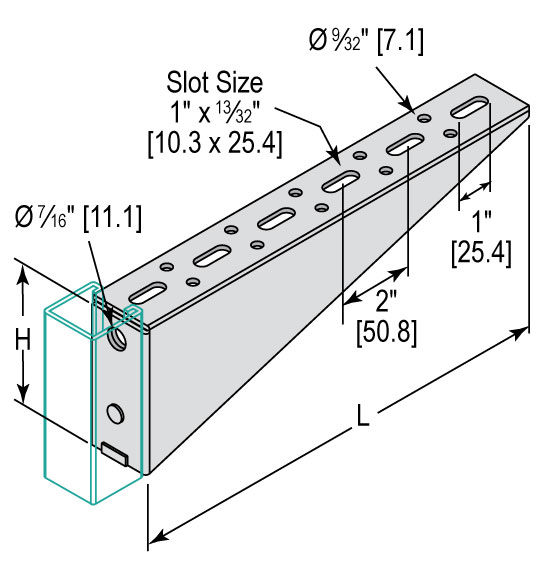

Part No. L H Uniform Load lbs Uniform Load kN Wt. Each lbs Wt. Each kg G2491LEG / G2491REG 6 (152.4) 1 15/16 (49.21) 275 (1.22) 0.58 (0.26) G2492LEG / G2492REG 8 (203.2) 2 7/16 (61.91) 275 (1.22) 0.82 (0.37) G2493LEG / G2493REG 10 (254.0) 2 15/16 (74.61) 275 (1.22) 1.03 (0.47) G2494LEG / G2494REG
Part No. Wt - lbs Set Screw Material Thickness in (mm) Flange Range Design Load lbs (kN) G1272SEG 0.39 3/8" - 16 x 1 1/2" 1/4" (6.3) 1/8" - 1" (3-25) 550 (2.45) G1985SEG 0.62 1/2" - 13 x 1 1/2" 3/8" (9.5) 1/8" - 1" (3-25) 1000 (4.45)

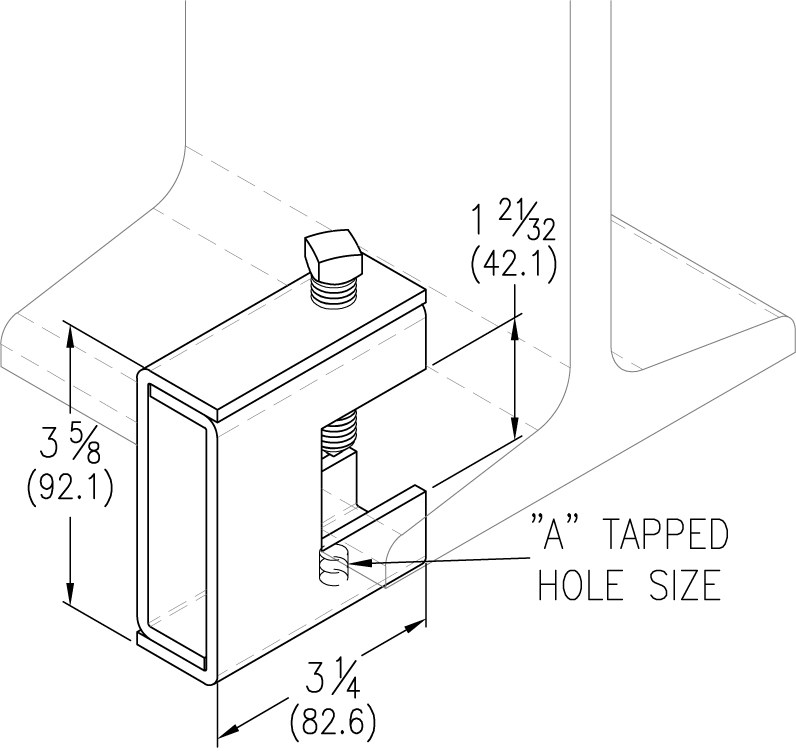

Part No. Wt. - lbs Rod Size Set Screw Thickness Design Load lbs (kN) G1650SEG 0.96 3/8" 1/2" - 13 x 1 - 1/2" 3/16" 1,100 (4.89) G1651S EG 1.22 1/2" 1/2" - 13 x 1 - 1/2" 1/4" 1,600 (7.12)

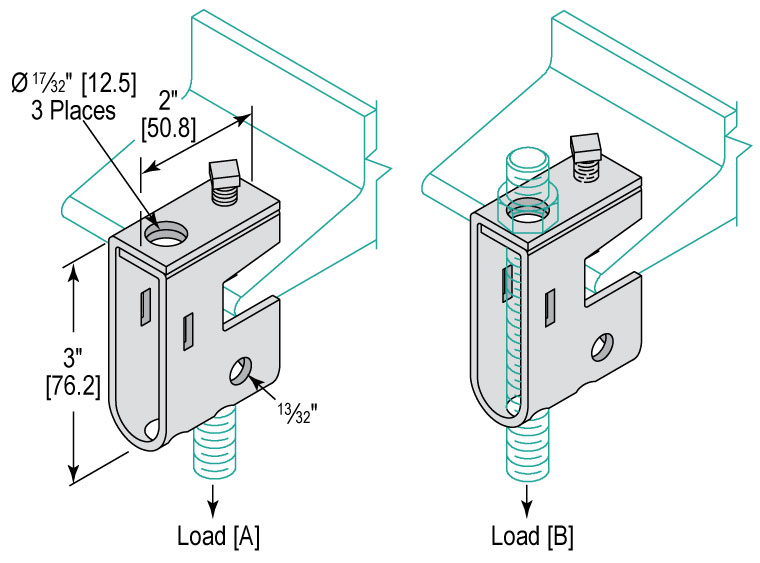

Standard Product Information for 15⁄8” (41.3) width series channel fittings Part No. Size Material Thickness Set Screw Max. Rec. Load (lbs) Max. Rec. Load (kN) Wt. Each (lbs) Wt. Each (kg) G2675EG 3/8 -16 3/16 (4.76) 1/2 X2 1300 5.78 1.56 0.71 For beam flanges between 3/4" (19.05) & 15/8" (41.28) thick
