Channel Nut Long Spring
Anna2025-06-19T20:12:32+00:00Part No. Wt - lbs Thread Size Thickness in (mm) G5506-1420EG 0.10 1/4" - 20 0.25 (6.3) G5508EG 0.10 3/8" - 16 0.37 (9.4) G5510EG 0.11 1/2" - 13 0.50 (12.7)
Bracket Channel
Anna2025-06-19T18:35:54+00:00Part No. Wt - lbs Length in (mm) Height in (mm) Uniform Load lbs (kN) G2547EG 3.71 12 (304.8) 8 3/4 (222.2) 1,550 (6.89) G2548EG 4.88 18 (457.2) 8 3/4 (222.2) 1,000 (4.44) G2549EG 7.41 24 (609.6) 8 3/4 (222.2) 950 (4.22) G2550EG 9.88 30 (762.0) 11 1/4 (285.7) 900 (4.00) G2551EG 10.83 36 (914.1)

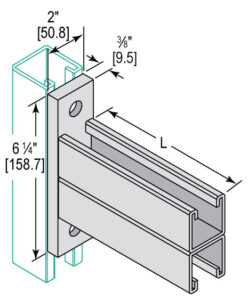

Double Strut Bracket
Anna2026-01-29T20:55:40+00:00Part No. Wt - lbs Length in (mm) Uniform Load lbs (kN) G2542EG 4.92 12 (304.8) 1,800 (8.01) G2543EG 6.78 18 (457.2) 1,200 (5.34) G2544EG 8.68 24 (609.6) 1,000 (4.45) G2545EG 10.50 30 (762.0) 800 (3.56) G2546EG 12.52 36 (914.4) 650 (2.89) Load shown for bracket mounted on 12 gauge channel Material is 1-5/8″ [41.3]
Universal G1001 Bracket
Anna2026-01-30T21:04:45+00:00Part No. Maximum Moment Max Load Wt - lbs G1593EG 12,5000 (1412 Nm) When mounted on 12 gauge channel Applies to bracket only, not the strength of the strut arm 2.46 Material is 1-5/8″ [41.3] wide x 1/4″ [6.3] thick unless specified. Holes are 13/16″ [20.6] from edge on 1-7/8″ [47.6] centers unless specified.

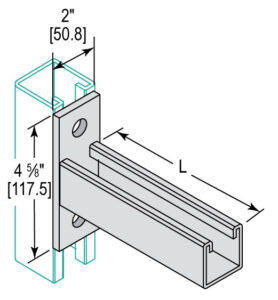

Single Strut Bracket
Anna2026-01-29T22:53:54+00:00Part No. Wt - lbs Length in (mm) Uniform Load lbs (kN) G2944EG 1.85 6 (152.4) 1,250 (5.56) G2945EG 2.36 12 (304.8) 750 (3.34) G2946EG 3.28 18 (457.2) 500 (2.22) G2946EG 4.49 24 (609.6) 350 (1.56) Load shown for bracket mounted on 12 gauge channel

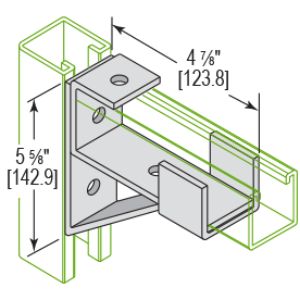

Universal 1-5/8″ Bracket
Anna2026-01-30T21:10:47+00:00Part No. Maximum Moment Max Load Wt - lbs G1075SEG 12,5000 (1412 Nm) When mounted on 12 gauge channel Applies to bracket only, not the strength of the strut arm 2.46 Material is 1-5/8″ [41.3] wide x 1/4″ [6.3] thick unless specified. Holes are 13/16″ [20.6] from edge on 1-7/8″ [47.6] centers unless specified.
Bracket 3 Hole Support for Strut Channel
Anna2025-06-19T17:16:06+00:00Part No. Wt - lbs Length in (mm) Uniform Load lbs (kN) G1769EG 1.68 8 1/2 (215.9) 850 (3.78) G1771EG 2.02 10 1/2 (266.7) 850 (3.78) Load shown for bracket mounted on 12 gauge channel

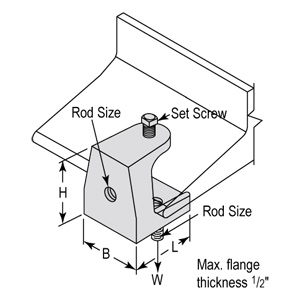

I Beam Clamp
Anna2026-01-30T20:03:55+00:00Part No. Wt - lbs Set Screw Material Thickness in (mm) Flange Range Design Load lbs (kN) G1985SEG 0.62 1/2" - 13 x 1 1/2" 3/8" (9.5) 1/8" - 1" (3-25) 1000 (4.45) *Max loads values when used in pairs.
Notched Beam Clamp
Anna2026-01-30T18:37:34+00:00Part No. Wt. - lbs Design Load lbs (kN) G1386EG 0.29 1,100 (4.89) *Design load when used in pairs
U-Bolt Beam Clamp
Anna2026-01-30T18:03:34+00:00Part No. Wt. lbs Max In. Height Design Load lbs G2785EG 0.72 1 5/8" 3 3/8" 2,000 G2786EG 0.79 3 1/4" 5" 2,000 G2787EG 1.26 6 1/2" 8 1/4" 2,000 * Design load when installed as intended, to be used in pairs only
