Part No. Wt - lbs G1377EG 2.44 Material is 1-5/8″ [41.3] wide x 1/4″ [6.3] thick unless specified. Holes are 9/16″ [14.3] diameter, 13/16″ [20.6] center to edge on 1-7/8″ [47.6] centers unless specified
Part No. Wt - lbs G1376AEG 1.83 Material is 1-5/8″ [41.3] wide x 1/4″ [6.3] thick unless specified. Holes are 9/16″ [14.3] diameter, 13/16″ [20.6] center to edge on 1-7/8″ [47.6] centers unless specified
Part No. Wt - lbs G1376EG 1.19 Material is 1-5/8″ [41.3] wide x 1/4″ [6.3] thick unless specified. Holes are 9/16″ [14.3] diameter, 13/16″ [20.6] center to edge on 1-7/8″ [47.6] centers unless specified
Part No. Wt - lbs G1048EG 0.98 Material is 1-5/8″ [41.3] wide x 1/4″ [6.3] thick unless specified. Holes are 9/16″ [14.3] diameter, 13/16″ [20.6] center to edge on 1-7/8″ [47.6] centers unless specified
Part No. Wt - lbs G1043AEG 0.95 Material is 1-5/8″ [41.3] wide x 1/4″ [6.3] thick unless specified. Holes are 9/16″ [14.3] diameter, 13/16″ [20.6] center to edge on 1-7/8″ [47.6] centers unless specified
Part No. Wt - lbs G1047EG 0.81 Material is 1-5/8″ [41.3] wide x 1/4″ [6.3] thick unless specified. Holes are 9/16″ [14.3] diameter, 13/16″ [20.6] center to edge on 1-7/8″ [47.6] centers unless specified
Part No. Wt - lbs G4047EG 0.66 Material is 1-5/8″ [41.3] wide x 1/4″ [6.3] thick unless specified. Holes are 9/16″ [14.3] diameter, 13/16″ [20.6] center to edge on 1-7/8″ [47.6] centers unless specified

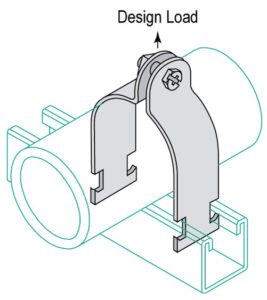

Part No. Clamp Size in (mm) O.D. in (mm) Design Load lbs (kN) Wt - lbs G1217EG 2 (50) 2.286 (58.1) 800 (3.56) 0.34
Part No. Pipe Size in (mm) O.D. in (mm) Design Load lbs (kN) Wt - lbs G1109EG 3/8 (10) 0.675 (17.1) 400 (1.78) 0.09 G1111EG 1/2 (15) 0.840 (21.3) 400 (1.78) 0.10 G1112EG 3/4 (20) 1.050 (26.7) 600 (2.67) 0.13 G1113EG 1 (25) 1.315 (33.4) 600 (2.67) 0.15 G1114EG 1 1/4 (32) 1.660 (42.2) 600
Part No. O.D. Size in (mm) Design Load lbs (kN) Wt - lbs G2061EG 4 7/8 (123.8) 1000 (4.45) 0.66 G2062EG 5 (127.0) 1000 (4.45) 0.70 G2063EG 5 1/8 (130.2) 1000 (4.45) 0.71 G2064EG 5 1/4 (133.4) 1000 (4.45) 0.73 G2065EG 5 3/8 (136.5) 1000 (4.45) 0.75 G2066EG 5 1/2 (139.7) 1000 (4.45) 0.71 G2067EG
