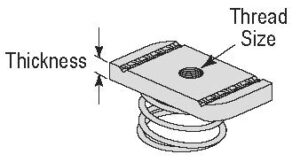

Part No. Thread Size Nut Thickness (mm) Wt. Each lbs Wt. Each kg G3013 1/2-13 3/8 (9.53) 0.09 0.04 Unless otherwise specified, all dimensions on drawings or in charts are in inches and dimensions in parentheses are in millimeters

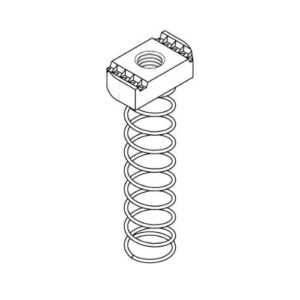

Part No. Thread Size Nut Thickness (mm) Wt. Each lbs Wt. Each kg G3008 3/8-16 3/8 (9.53) 0.09 0.04 G3010 1/2-13 1/2 (12.70) 0.12 0.05 Unless otherwise specified, all dimensions on drawings and in charts are in inches and dimensions in parentheses are in millimeters
Part No. Thread Size Nut Thickness (mm) Wt. Each lbs Wt. Each kg G5507 #8-32 1/4 (6.35) 0.07 0.03 Unless otherwise specified, all dimensions on drawings and in charts are in inches and dimensions shown in parentheses are in millimeters
Part No. Wt - lbs Thread Size (mm) Thickness in (mm) G4006 - G1420EG 0.68 1/4" (20) 0.25" (6.3) 0.068 5/16" (18) 0.25 (6.3) 0.070 3/8" (16) 0.25 (6.3) 0.087 1/2" (13) 0.37 (9.4) 0.104 5/8" (11) 0.37 (9.4)
Part No. Width (mm) Height (mm) Depth (mm) Std. Length ft. Std. Length m Material Wt. Each lbs./ft. Wt. Each kg/m G3184 1 7/16 (36.5) 15/32 (11.9) 1/2 (12.7) 10 (3.05) Aluminum-Plain 0.14 (0.21) G3712P 1 1/16 (27.0) 1/2 (12.7) 19/32 (15.1) 10 (3.05) Plastic-Black 0.08 (0.12)

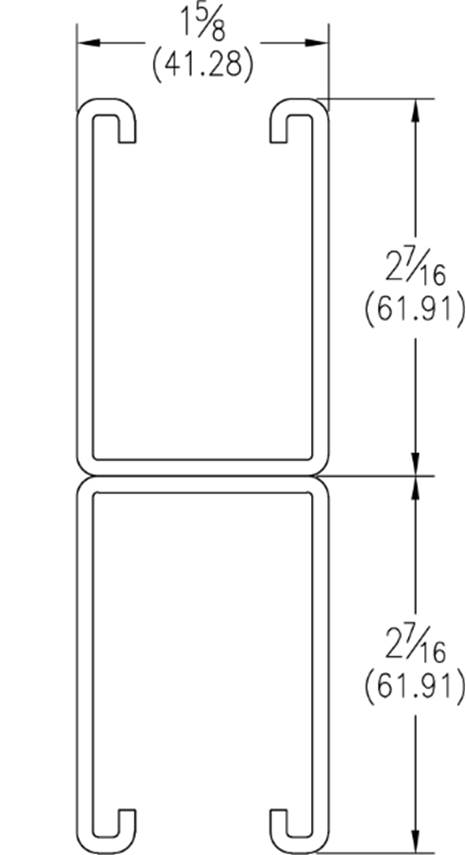

Part No. Type Description Weight lbs./ft. Weight kg/m Bundle Qty. 10ft. Bundle Qty. 3.05m Bundle Qty. 20ft. Bundle Qty. 6.1m G5500 No Openings 2.30 (3.42) 300 (91.44) 400 (121.92) G5501 Welded Back to Back 4.60 (6.85) 200 (60.96) 200 (60.96) Unless otherwise specified, all dimensions on drawings or in charts are in inches and dimensions

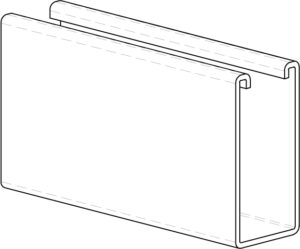

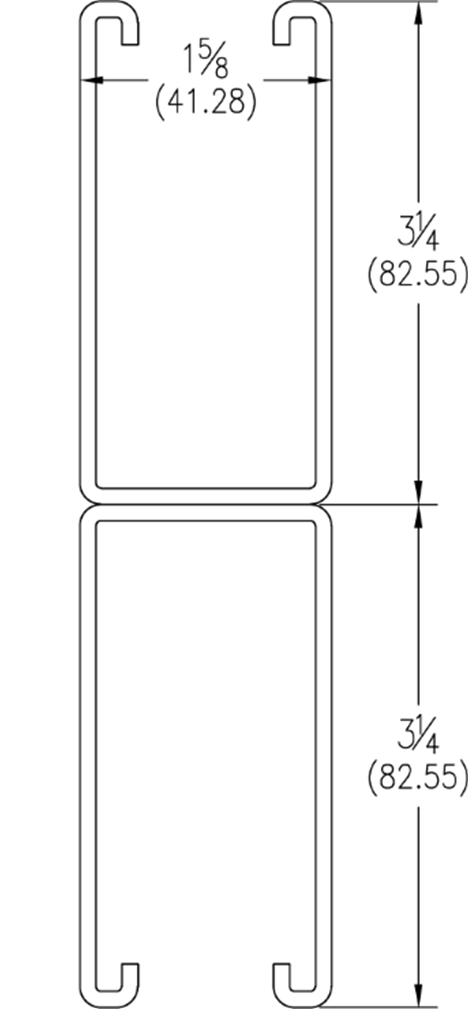

Part No. Type Description Weight lbs./ft. Weight kg/m Bundle Qty. 10ft. Bundle Qty. 3.05m Bundle Qty. 20ft. Bundle Qty. 6.1m G5000 No Openings 2.99 (4.45) 300 (91.44) 300 (91.44) G5001 Welded Back to Back 5.98 (8.90) 100 (30.48) 200 (60.96)

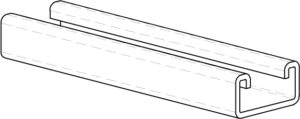

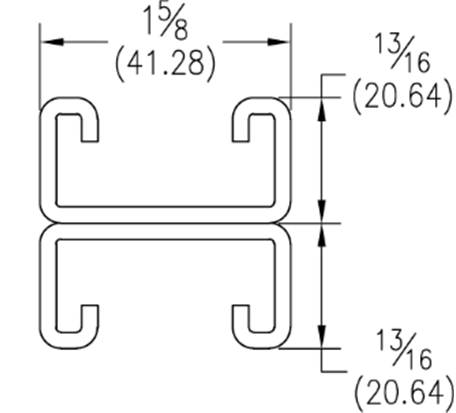

Part No. Type Description Weight lbs./ft. Weight kg/m Bundle Qty. 10ft. Bundle Qty. 3.05m Bundle Qty. 20ft. Bundle Qty. 6.1m G4100 No Openings 1.22 (1.82) 500 (152.4) 1000 (304.8) G4101 Welded Back to Back 2.52 (3.75) 500 (152.4) 500 (152.4)

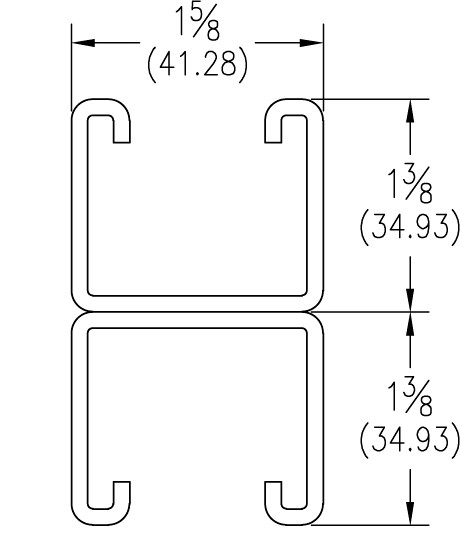

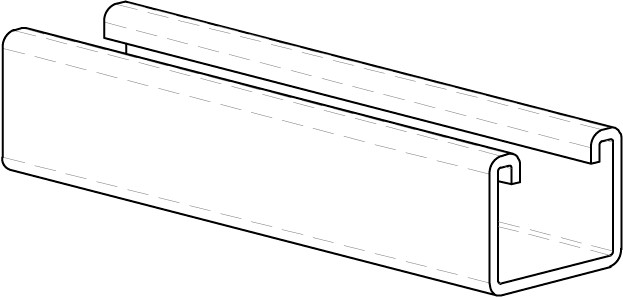

Part No. Type Description Weight lbs./ft. Weight kg/m Bundle Qty. 10ft. Bundle Qty. 3.05m Bundle Qty. 20ft. Bundle Qty. 6.1m G3000 No Openings 1.59 (2.37) 500 (152.4) 500 (152.4) G3001 Welded Back to Back 3.40 (5.06) 200 (61.0) 300 (91.4)

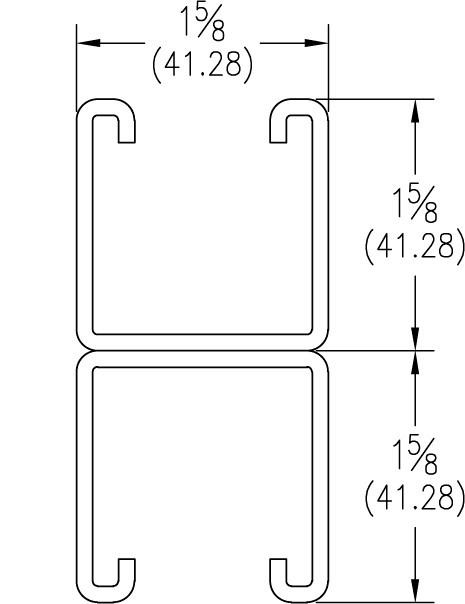

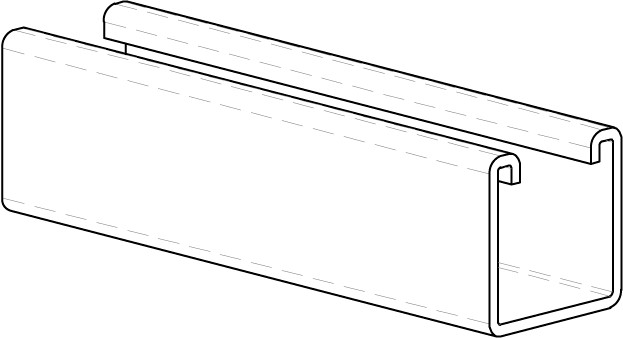

Part No. Type Description Weight lbs./ft. Weight kg/m Bundle Qty. 10ft. Bundle Qty. 3.05m Bundle Qty. 20ft. Bundle Qty. 6.1m G1000 No Openings 1.77 (2.63) 500 (152.4) 500 (152.4) G1001 Welded Back to Back 3.54 (5.27) 300 (91.4) 300 (91.4) Unless otherwise specified, all dimensions on drawings and in charts are in inches and dimensions
