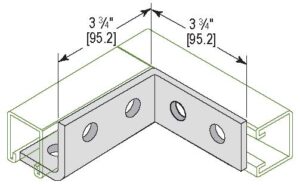

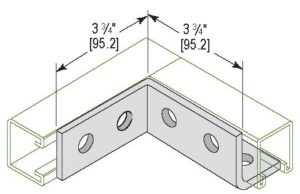

Part No. Wt. Each lbs Wt. Each kg G2343RA RIGHT 1.20 (0.54) G2343LA LEFT 1.20 (0.54) Unless otherwise specified, all dimensions on drawings and in charts are in inches and dimensions in parentheses are in millimeters

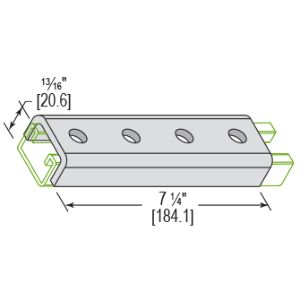

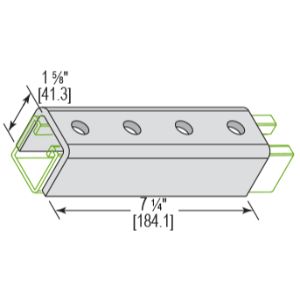

Part No. Channel Size Wt. Each lbs Wt. Each kg G4377 1-5/8" Channel 2.44 (1.10) G4377 13/16" Channel 1.63 (0.74) Unless otherwise specified, all dimensions on drawings and in charts are in inches and dimensions shown in parentheses are in millimeters

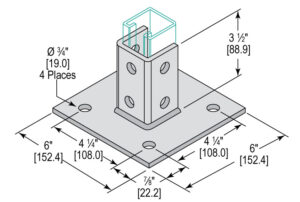

Part No. Wt. Each lbs Wt. Each kg G2072ASQ 3.92 (1.78) Unless otherwise specified, all dimensions on the drawings or in the charts are in inches and dimensions shown in parentheses are in millimeters. 4 Hole Square 3-1/2″ Material is 1-5/8″ [41.3] wide x 1/4″ [6.3] thick unless specified. Holes are 13/16″ [20.6] from edge
Part No. Used with Length Uniform Load lbs Uniform Load kN Wt. Each lbs Wt. Each kg G2513A G1000 6 (152.4) 1250 5.56 1.51 0.86 G2514A G1000 12 (304.8) 750 3.34 2.75 2.55 Unless otherwise specified, all dimensions on drawings or in charts are in inches and dimensions shown in parentheses are in millimeters
Part No. Used With Length Uniform Load lbs Uniform Load kN Wt. Each lbs Wt. Each kg G2513 G1000 6 (152.4) 1250 5.56 1.51 0.68 G2514 G1000 12 (304.8) 750 3.34 2.55 0.57 Unless otherwise specified, all dimensions on drawings and in charts are in inches and dimensions shown in parentheses are in millimeters
Part No. Center Slot to Center Slot Overall Length Wt. Each lbs Wt. Each kg G1131 6 (152.4) 8 5/8 (219.08) 2.56 1.16 Unless otherwise specified, all dimensions on drawings and in charts is in inches and dimensions shown in parentheses are in millimeters
Part No. O.D. Size A Nom. Tube Size B C D Max. Rec. Load X lbs Max. Rec. Load X kN Max. Rec. Load Y lbs Max. Rec. Load Y kN Max. Rec. Load Z lbs Max. Rec. Load Z kN Wt. Each lbs. Wt. Each kg 004T008 .25 (6.35) 1/8 (3) 1.11 (28.19) .075
Part No. O.D. Size A Nom. Pipe Size Overall Height Width of Clamp Length of Base Max. Rec. Load X lbs Max. Rec. Load X kN Max. Rec. Load Y lbs Max. Rec. Load Y kN Max. Rec. Load Z lbs Max. Rec. Load Z kN Wt. Each lbs Wt. Each kg 011N014 .675 (17.15)
Part No. RS Thread Size Max. Rec. Load lbs Max. Rec. Load kN Wt. Each lbs Wt. Each kg M2137 3/8-16 3/8-16 X 1 610 2.71 0.26 0.12 M2150 1/2-13 1/2-13 X 1 1130 5.03 0.28 0.13 Unless otherwise specified, all dimensions on drawings and in charts are in inches and dimensions shown in parentheses
Part No. Thread Size Nut Thickness (mm) Wt. Each lbs Wt. Each kg G1023S 3/4-10 1/2 (12.70) 0.15 (0.07) G1024 7/8-9 1/2 (12.70) 0.15 (0.07) G1006-1420 * 1/4-20 1/4 (6.35) 0.07 (0.03) G1008 * 3/8-16 3/8 (9.53) 0.10 (0.05) G1010 * 1/2-13 1/2 (12.70) 0.13 (0.06) G10123S 5/8-11 1/2 (12.70) 0.15 (0.07) Unless otherwise specified,
