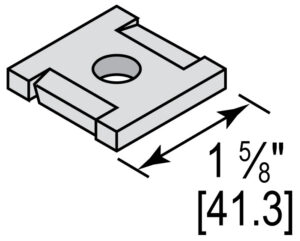

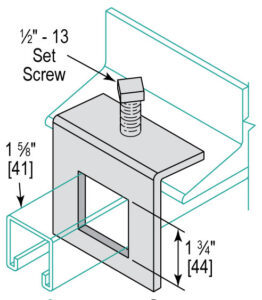

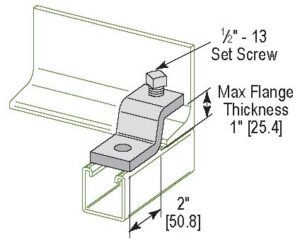

Part No. Wt - lbs G1065EG 0.34 Material is 1-5/8″ [41.3] wide x 1/4″ [6.3] thick unless specified.  Holes are 9/16″ (14.3) diameter 13/16″ [20.6] center to edge on 1-7/8″ [47.6] centers unless specified.

Part No. Wt - lbs Bolt Size in  (mm) Hole Size in  (mm) G2862EG 0.17 1/4  (6.0) 5/16  (7.9) G2863EG 0.17 3/8  (10.0) 7/16  (11.1) G2864EG 0.16 1/2  (12.0) 9/16  (14.3)

Part No. Wt - lbs Bolt Size in  (mm) Hole Size in  (mm) G1062EG 0.17 5/16  (7.0) 3/8  (9.5) G1063EG 0.17 3/8  (8.0) 7/16  (11.1) G1064EG 0.15 1/2  (12.0) 9/16  (14.3) G1964EG 0.15 5/8  (16.0) 11/16  (17.5) G2471EG 0.14 3/4  (20.0) 13/16  (20.6) G2490EG 0.13 7/8  (22.0) 15/16  (23.8)

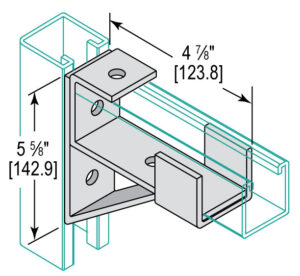

Part No. Maximum Moment Max Load Wt - lbs G1593EG 12,5000 (1412 Nm) When mounted on 12 gauge channel Applies to bracket only, not the strength of the strut arm 2.46 Material is 1-5/8″ [41.3] wide x 1/4″ [6.3] thick unless specified.  Holes are 13/16″ [20.6] from edge on 1-7/8″ [47.6] centers unless specified.

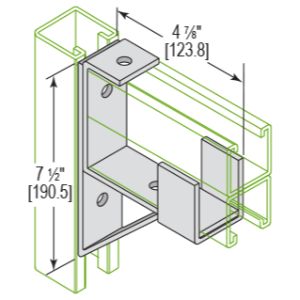

Part No. Maximum Moment Max Load Wt - lbs G1075EG Maximum Moment 5,800 in.lb. (655 Nm) When mounted on 12 gauge channel Max load applies to bracket only, not the strength of the strut arm 2,46

Part No. Wt - lbs Length in  (mm) A in  (mm) B in  (mm) Uniform Load lbs  (kN) G1777EG 3.81 16 1/2  (419.1) 5 1/4  (133.3) 5 3/4  (146.0) 1,200  (5.34) Load shown for bracket mounted on 12 gauge channel
