Part No. Color Use with Wt. Each lbs Wt. Each kg G1180 White G1100 Channel 0.04 0.02 Unless otherwise specified, all dimensions on drawings and in charts are in inches and dimensions shown in parentheses are in millimeters

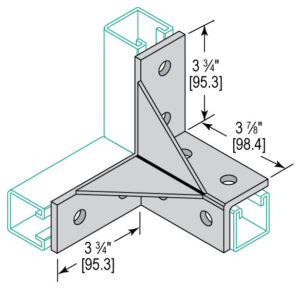

Part No. Wt - lbs G2226EG 2.05 Material is 1-5/8″ [41.3] wide x 1/4″ [6.3] thick unless specified. Holes are 9/16″ [14.3] diameter, 13/16″ [20.6] center to edge on 1-7/8″ [47.6] centers unless specified.
Part No. Length in (mm) Wt - lbs G1044EG 4" (101.6) 0.71 5" (127.0) 0.82 6" (152.4 0.94 7" (177.8) 1.03 8" (203.2) 1.13 Material is 1-5/8" (41.3) wide x 1/4" (6.3) thick unless specified. Holes are 9/16" (14.3) diameter, 13/16" (20.6) center to edge on 1-7/8" (47.6) centers unless specified.
Part No. Wt - lbs G1046AEG 0.67 Material is 1-5/8″ [41.3] wide x 1/4″ [6.3] thick unless specified. Holes are 9/16″ [14.3] diameter, 13/16″ [20.6] center to edge on 1-7/8″ [47.6] centers unless specified

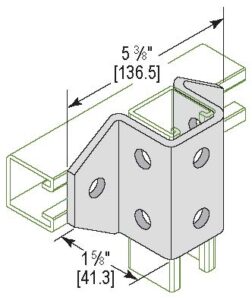

Part No. Wt - lbs G2326EG 1.67 Material is 1-5/8″ [41.3] wide x 1/4″ [6.3] thick unless specified. Holes are 9/16″ [14.3] diameter, 13/16″ [20.6] center to edge on 1-7/8″ [47.6] centers unless specified.

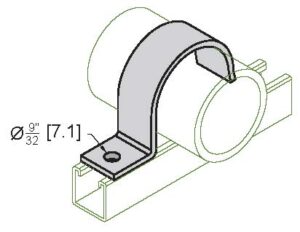

Part No. Tubing O.D. in (mm) CL in (mm) Wt - lbs G2008EG 1/4 (6.3) 9/16 (14.3) 0.040 G2010EG 3/8 (9.5) 5/8 (15.9) 0.052 G2012EG 1/2 (12.7) 11/16 (17.5) 0.058 G2014EG 5/8 (15.8) 3/4 (19.0) 0.071 G2016EG 3/4 (19.0) 13/16 (20.6) 0.077 G2018EG 7/8 (22.2) 7/8 (22.2) 0.087 G2020EG 1 (25.4) 15.16 (23.8) 0.100
Part No. Used With Wt - lbs G2949EG G1000 Series of Channels 0.46 Material is 1-5/8″ [41.3] wide x 1/4″ [6.3] thick unless specified. Holes are 9/16″ (14.3) diameter 13/16″ [20.6] center to edge on 1-7/8″ [47.6] centers unless specified.
Part No. Pipe Size CL Hole Size Wt - lbs G2558-05EG 1/2 (15) 1 1/8 (23.8) 5/16 (7.9) 0.23 G2558-07EG 3/4 (20) 1 3/16 (25.4) 5/16 (7.9) 0.26 G2558-10EG 1 (25) 1 5/16 (28.6) 5/16 (7.9) 0.29 G2558-12EG 1 1/4 (32) 1 7/16 (33.3) 5/16 (7.9) 0.34 G2558-15EG 1 1/2 (40) 1 9/16 (36.5) 5/16

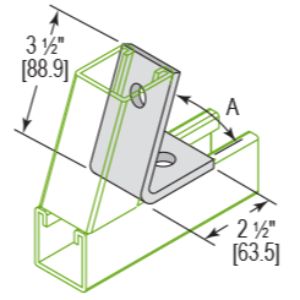

Part No. Wt - lbs G1186EG 0.56 "A" is available in any angle up to 90°. Dimensions shown may vary based on specified angle “A” Material is 1-5/8″ [41.3] wide x 1/4″ [6.3] thick unless specified. Holes are 9/16″ (14.3) diameter 13/16″ [20.6] center to edge on 1-7/8″ [47.6] centers unless specified.

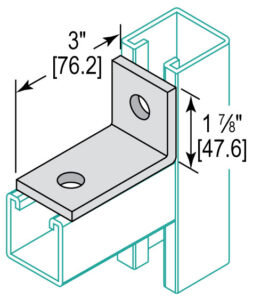

Part No. Wt - lbs G1281EG 0.45 Material is 1-5/8" (41.3) wide x 1/4" (6.3) thick unless specified. Holes are 9/16" (14.3) diameter 13/16" (20.6) center to edge on 1-7/8" (47.6) centers unless specified.
