Part No. Wt. Each lbs G1924EG 0.31 Material is 1-5/8″ [41.3] wide x 1/4″ [6.3] thick unless specified.  Holes are 9/16″ (14.3) diameter 13/16″ [20.6] center to edge on 1-7/8″ [47.6] centers unless specified.

Part No. Wt. Each lbs G1941EG 0.93 Material is 1-5/8″ [41.3] wide x 1/4″ [6.3] thick unless specified.  Holes are 9/16″ (14.3) diameter 13/16″ [20.6] center to edge on 1-7/8″ [47.6] centers unless specified.

Part No. Wt. Each lbs G1067EG 0.70 Material is 1-5/8″ [41.3] wide x 1/4″ [6.3] thick unless specified.  Holes are 9/16″ (14.3) diameter 13/16″ [20.6] center to edge on 1-7/8″ [47.6] centers unless specified.

Part No. Wt. Each lbs G1066EG 0.54 Material is 1-5/8″ [41.3] wide x 1/4″ [6.3] thick unless specified.  Holes are 9/16″ (14.3) diameter 13/16″ [20.6] center to edge on 1-7/8″ [47.6] centers unless specified.

Part No. Rod Size (mm) Hole Size (mm) Wt. Each lbs. Wt. Each (Kg) G2862EG 1/4 (6) 5/16 (7.9) 0.17 (.08) G2863EG 3/8 (10) 7/16 (11.1 0.17 (.08) G2864EG 1/2  (12) 9/16 (14.3) 0.16 (.07) Material is 1-5/8″ [41.3] wide x 1/4″ [6.3] thick unless specified. Holes are 9/16″ (14.3) diameter 13/16″ [20.6] center to

Part No. Rod Size (mm) Hole Size (mm) Wt. Each lbs. Wt. Each Kg G1062EG 5/16 (7) 3/8 (9.5) 0.17 0.08 G1063EG 3/8 (8) 7/16 (11.1) 0.17 0.08 G1064EG 1/2 (12) 9/16 (14.3) 0.15 0.07 G1964EG 5/8 (16) 11/16 (17.5) 0.15 0.07 G2471EG 3/4 (20) 13/16 (20.6) 0.14 0.06 G2490EG 7/8 (22) 15/16 (23.8) 0.13

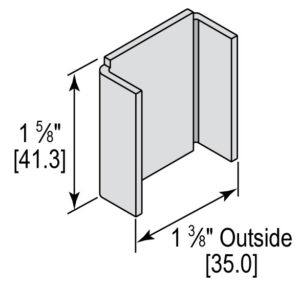

Part No. For Use with Channel Width in  (mm) Height in  (mm) Wt - lbs G1280EG 1 5/8" x 1 5/8" 12 Gauge - G1000 1 3/8  (35.0) 1 5/8  (41.3) 0.80
