Part No. O.D. Size in (mm) Design Load lbs (kN) Wt - lbs G2024EG 1/4 (6.4) 400 (1.78) 0.08 G2025EG 3/8 (9.5) 400 (1.78) 0.08 G2026EG 1/2 (12.7) 400 (1.78) 0.08 G2027EG 5/8 (15.9) 400 (1.78) 0.09 G2028EG 3/4 (19.0) 400 (1.78) 0.10 G2029EG 7/8 (22.3) 400 (1.78) 0.11 G2030EG 1 (25.4) 600 (2.67) 0.14

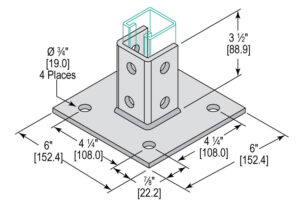

Part No. Wt - lbs G2073ASQEG 3.88 4 Hole Square 3-1/2″ Material is 1-5/8″ [41.3] wide x 1/4″ [6.3] thick unless specified. Holes are 13/16″ [20.6] from edge on 1-7/8″ [47.6] centers unless specified.
Part No. Wt - lbs G2072ASQEG 3.53 2 Hole Square 3″ Material is 1-5/8″ [41.3] wide x 1/4″ [6.3] thick unless specified. Holes are 13/16″ [20.6] from edge on 1-7/8″ [47.6] centers unless specified.
Part No. Wt - lbs G2941EG 2.79 2 Hole Square Flush 3-1/2″ Material is 1-5/8″ [41.3] wide x 1/4″ [6.3] thick unless specified. Holes are 13/16″ [20.6] from edge on 1-7/8″ [47.6] centers unless specified.
Part No. Wt - lbs G2942EG 2.79 Material is 1-5/8″ [41.3] wide x 1/4″ [6.3] thick unless specified. Holes are 13/16″ [20.6] from edge on 1-7/8″ [47.6] centers unless specified.

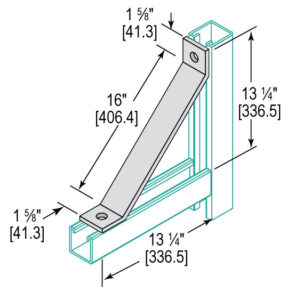

Part No. Size Between Holes Wt - lbs G2452-8EG 8" 7 1/2" 1.19 G2452EG 16" 13 1/4" 2.18 Material is 1-5/8″ [41.3] wide x 1/4″ [6.3] thick unless specified. Holes are 9/16″ (14.3) diameter 13/16″ [20.6] center to edge on 1-7/8″ [47.6] centers unless specified.
Part No. Wt - lbs G2815EG 3.07 Material is 1-5/8″ [41.3] wide x 1/4″ [6.3] thick unless specified. Holes are 9/16″ (14.3) diameter 13/16″ [20.6] center to edge on 1-7/8″ [47.6] centers unless specified.
Part No. Wt - lbs G1354EG 1.07 Material is 1-5/8″ [41.3] wide x 1/4″ [6.3] thick unless specified. Holes are 9/16″ (14.3) diameter 13/16″ [20.6] center to edge on 1-7/8″ [47.6] centers unless specified.
Part No. Wt - lbs G1034EG 0.71 Material is 1-5/8″ [41.3] wide x 1/4″ [6.3] thick unless specified. Holes are 9/16″ (14.3) diameter 13/16″ [20.6] center to edge on 1-7/8″ [47.6] centers unless specified.
Part No. Wt - lbs G1033EG 0.71 Material is 1-5/8″ [41.3] wide x 1/4″ [6.3] thick unless specified. Holes are 9/16″ (14.3) diameter 13/16″ [20.6] center to edge on 1-7/8″ [47.6] centers unless specified.
