4 Hole Closed 45 Degree Fitting
admin2026-01-26T15:42:08+00:00Part No. Wt - lbs G2265EG 0.93 Material is 1-5/8″ [41.3] wide x 1/4″ [6.3] thick unless specified. Holes are 13/16″ [20.6] from edge on 1-7/8″ [47.6] centers unless specified.
Wing Fitting Single Corner 6 Hole Left
admin2026-01-26T15:42:47+00:00Part No. Wt - lbs G2343LEG 1.10 Material is 1-5/8″ [41.3] wide x 1/4″ [6.3] thick unless specified. Holes are 13/16″ [20.6] from edge on 1-7/8″ [47.6] centers unless specified.
Wing Fitting Single Corner 6 Hole Right
admin2026-01-26T15:43:28+00:00Part No. Wt - lbs G2343REG 1.10 Material is 1-5/8″ [41.3] wide x 1/4″ [6.3] thick unless specified. Holes are 13/16″ [20.6] from edge on 1-7/8″ [47.6] centers unless specified.
Wing Fitting Single Corner 6 Hole Gusset Left
admin2026-01-26T15:44:21+00:00Part No. Wt - lbs G2344LEG 1.68 Material is 1-5/8″ [41.3] wide x 1/4″ [6.3] thick unless specified. Holes are 13/16″ [20.6] from edge on 1-7/8″ [47.6] centers unless specified.

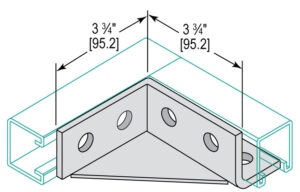

Wing Fitting Single Corner 6 Hole Gusset Right
admin2026-01-19T22:10:58+00:00Part No. Material (mm) Hole Size (mm) Wt - lbs G2344REG 1-5/8" (41.3) wide x 1/4" (6.3) thick unless specified 9/16" (14.3) diameter, 13/16" (20.6) center to edge on 1-7/8" (47.6) centers unless specified 1.68
Wing Fitting Single Corner 3 Hole Left
admin2026-01-26T15:46:04+00:00Part No. Wt - lbs G2341LEG 0.53 Material is 1-5/8″ [41.3] wide x 1/4″ [6.3] thick unless specified. Holes are 13/16″ [20.6] from edge on 1-7/8″ [47.6] centers unless specified.
U-Fitting Cross 8 Hole 1-5/8″
admin2026-01-26T15:46:38+00:00Part No. Wt - lbs G2326EG 1.67 Material is 1-5/8″ [41.3] wide x 1/4″ [6.3] thick unless specified. Holes are 13/16″ [20.6] from edge on 1-7/8″ [47.6] centers unless specified.

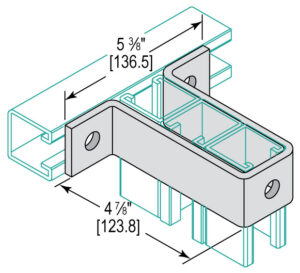

U-Fitting Cross 3 Hole 4-7/8″
admin2026-01-26T15:47:21+00:00Part No. Wt - lbs G2473EG 1.59 Material is 1-5/8″ [41.3] wide x 1/4″ [6.3] thick unless specified. Holes are 13/16″ [20.6] from edge on 1-7/8″ [47.6] centers unless specified.
3-1/4″ U Fitting
admin2026-01-26T15:47:52+00:00Part No. Wt - lbs G1737EG 1.18 Material is 1-5/8″ [41.3] wide x 1/4″ [6.3] thick unless specified. Holes are 13/16″ [20.6] from edge on 1-7/8″ [47.6] centers unless specified.

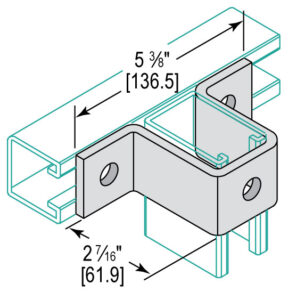

3 Hole U-Fitting 2-7/16″
admin2026-01-26T15:48:54+00:00Part No. Wt - lbs G5547EG 1.03 Material is 1-5/8″ [41.3] wide x 1/4″ [6.3] thick unless specified. Holes are 13/16″ [20.6] from edge on 1-7/8″ [47.6] centers unless specified.
