| Part No. | Wt – lbs |
| G2347EG | 1.95 |

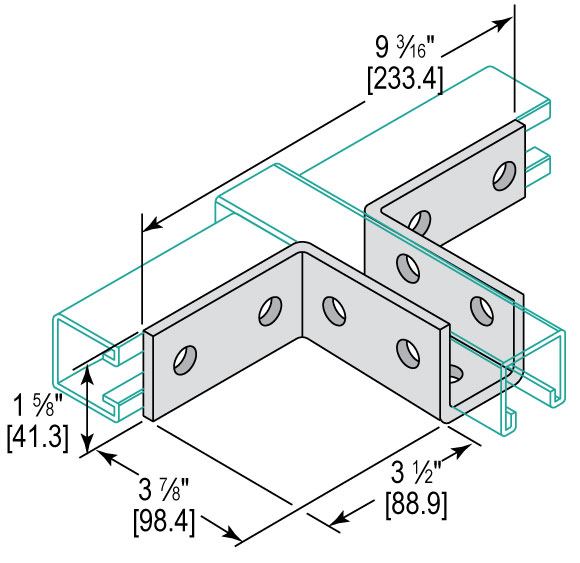

Measurements
Material is 1-5/8″ [41.3] wide x 1/4″ [6.3] thick unless specified. Holes are 9/16″ [14.3] diameter, 13/16″ [20.6] center to edge on 1-7/8″ [47.6] centers unless specified
Material
Available Finishes / Materials: EG — Electro-galvanized GN — Green E-coat YC — Yellow chromate HD — Hot dipped galvanized S4 — 304 stainless steel S6 — 316 stainless steel
Finish
Standard Finish: EG
Technical Details
