Part No. Length in  (mm) Wt – lbs
G1044EG 4″ (101.6) 0.71
5″ (127.0) 0.82
6″ (152.4 0.94
7″ (177.8) 1.03
8″ (203.2) 1.13

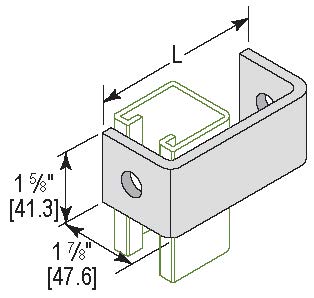

Material is 1-5/8″ (41.3) wide x 1/4″ (6.3) thick unless specified.  Holes are 9/16″ (14.3) diameter, 13/16″ (20.6) center to edge on 1-7/8″ (47.6) centers unless specified.
