Part No. Wt – lbs Set Screw Material Thickness in (mm) Flange Range Design Load
lbs  (kN)

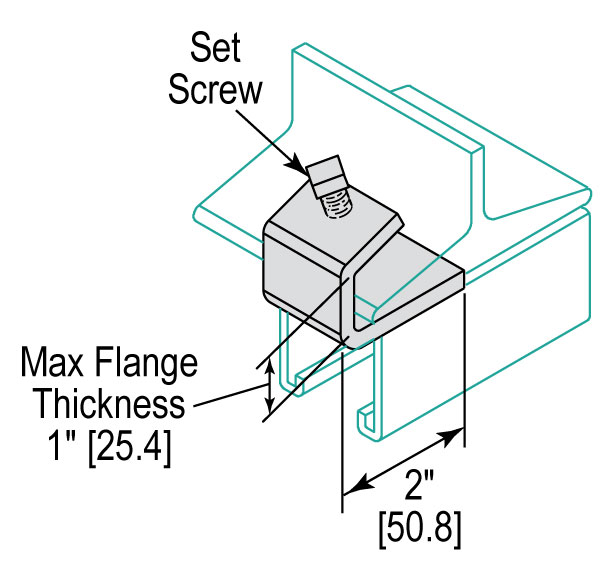

G1272SEG 0.39 3/8″ – 16 x 1 1/2″ 1/4″  (6.3) 1/8″ – 1″  (3-25) 550  (2.45)
G1985SEG 0.62 1/2″ – 13 x 1 1/2″ 3/8″  (9.5) 1/8″ – 1″  (3-25) 1000  (4.45)
