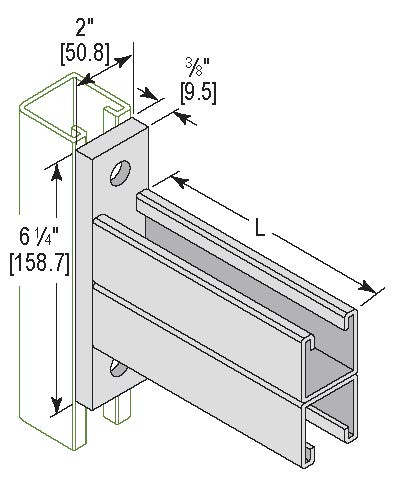

Hole Diameter: 9⁄16” (14.3); Hole Spacing-From End: 13⁄16” (20.6); Hole Spacing-On Center: 17⁄8” (47.6); Width: 15⁄8” (41.3); Thickness: 1⁄4” (6.4)
Material
Carbon steel (Type 304 or 316 Stainless Steel upon request)
Electro-galvanized (hot-dip galvanized, e-coat, and powder coated upon request)
Specify figure number, material, and finish
| Part No. | Length | Uniform Load lbs |
Uniform Load kN |
Wt. Each lbs |
Wt. Each kg |
| G2453 | 12 (304.80) | 2000 | (8.90) | 5.05 | (2.29) |
Unless otherwise specified, all dimensions on drawings and in charts are in inches and dimensions shown in parentheses are in millimeters
