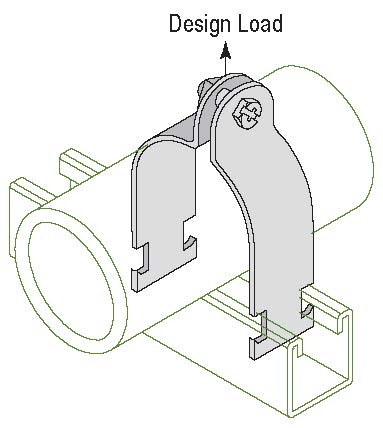

| Part No. | O.D. Size A |
Nom. Tube Size |
B | C | D | Max. Rec. Load X lbs |
Max. Rec. Load X kN |
Max. Rec. Load Y lbs |
Max. Rec. Load Y kN |
Max. Rec. Load Z lbs |
Max. Rec. Load Z kN |
Wt. Each lbs. |
Wt. Each kg |
| 004T008 | .25 (6.35) | 1/8 (3) | 1.11 (28.19) | .075 (1.91) | .62 (15.75) | 50 | (0.22) | 50 | (0.22) | 400 | (1.78) | 0.13 | (0.06) |
| 006T010 | .375 (9.53) | 1/4 (6) | 1.24 (31.50) | .075 (1.91) | .75 (19.05) | 50 | (0.22) | 50 | (0.22) | 400 | (1.78) | 0.14 | (0.06) |
| 008T012 | .5 (12.70) | 3/8 (10) | 1.36 (34.54) | .075 (1.91) | .87 (22.10) | 50 | (0.22) | 50 | (0.22) | 400 | (1.78) | 0.15 | (0.07) |
| 010T014 | .625 (15.88) | 1/2 (15) | 1.5 (38.10) | .075 (1.91) | 1 (25.40) | 50 | (0.22) | 50 | (0.22) | 400 | (1.78) | 0.16 | (0.07) |
| 012T016 | .75 (19.05) | 5/8 (17) | 1.78 (45.21) | .075 (1.91) | 1.33 (33.78) | 75 | (0.33) | 75 | (0.33) | 600 | (2.67) | 0.19 | (0.09) |
| 014T018 | .875 (22.23) | 3/4 (20) | 1.91 (48.51) | .075 (1.91) | 1.45 (36.83) | 75 | (0.33) | 75 | (0.33) | 600 | (2.67) | 0.21 | (0.09) |
| 016T020 | 1 (25.40) | – | 2.03 (51.56) | .075 (1.91) | 1.66 (42.16) | 75 | (0.33) | 75 | (0.33) | 600 | (2.67) | 0.29 | (0.13) |
| 018T022 | 1.125 (28.58) | 1 (25) | 2.16 (54.86) | .075 (1.91) | 1.79 (45.47) | 75 | (0.33) | 75 | (0.33) | 600 | (2.67) | 0.31 | (0.14) |
| 020T024 | 1.25 (31.75) | – | 2.3 (58.42) | .105 (2.67) | 1.92 (48.77) | 75 | (0.33) | 75 | (0.33) | 600 | (2.67) | 0.33 | (0.15) |
| 022T026 | 1.375 (34.93) | 1 1/4 (32) | 2.75 (69.85) | .119 (3.02) | 2.22 (56.39) | 75 | (0.33) | 75 | (0.33) | 600 | (2.67) | 0.42 | (0.19) |
| 024N028 | 1.5 (38.10) | – | 2.75 (69.85) | .119 (3.02) | 2.22 (56.39) | 75 | (0.33) | 75 | (0.33) | 600 | (2.67) | 0.38 | (0.17) |
| 026N030 | 1.625 (41.28) | 1 1/2 (40) | 3.03 (76.96) | .119 (3.02) | 2.47 (62.74) | 75 | (0.33) | 75 | (0.33) | 600 | (2.67) | 0.48 | (0.22) |
| 028N032 | 1.75 (44.45) | – | 3.03 (76.96) | .119 (3.02) | 2.47 (62.74) | 125 | (0.56) | 125 | (0.56) | 800 | (3.56) | 0.46 | (0.21) |
| 032N036 | 2 (50.80) | – | 3.28 (83.31) | .119 (3.02) | 2.72 (69.09) | 125 | (0.56) | 125 | (0.56) | 800 | (3.56) | 0.50 | (0.23) |
| 034N040 | 2.125 (53.98) | 2 (50) | 3.53 (89.66) | .119 (3.02) | 2.97 (75.44) | 125 | (0.56) | 125 | (0.56) | 800 | (3.56) | 0.57 | (0.26) |
| 040N046 | 2.5 (63.50) | – | 4.03 (102.36) | .119 (3.02) | 3.47 (88.14) | 125 | (0.56) | 125 | (0.56) | 800 | (3.56) | 0.60 | (0.27) |
| 042N048 | 2.625 (66.68) | 2 1/2 (65) | 4.03 (102.36) | .119 (3.02) | 3.47 (88.14) | 125 | (0.56) | 125 | (0.56) | 800 | (3.56) | 0.58 | (0.26) |
| 050N054 | 3 (76.20) | – | 4.52 (114.81) | .119 (3.02) | 3.97 (100.84) | 125 | (0.56) | 125 | (0.56) | 800 | (3.56) | 0.69 | (0.31) |
| 050N056 | 3.125 (79.38) | 3 (80) | 4.52 (114.81) | .119 (3.02) | 3.97 (100.84) | 125 | (0.56) | 125 | (0.56) | 800 | (3.56) | 0.68 | (0.31) |
| 058N064 | 3.625 (92.08) | 3 1/2 (90) | 5.03 (127.76) | .119 (3.02) | 4.47 (113.54) | 150 | (0.67) | 200 | (0.89) | 1000 | (4.45) | 0.76 | (0.34) |
| 066N074 | 4.125 (104.78) | 4 (100) | 5.66 (127.76) | .119 (3.02) | 5.09 (129.29) | 150 | (0.67) | 200 | (0.89) | 1000 | (4.45) | 0.88 | (0.40) |
Material
Clamp Material: Carbon steel (Type 304 or 316 Stainless Steel upon request) Cushion Material: Multi-Flex TES A9110 EV1 Black, in accordance with ASTM D4474 TES 0130 A90000. Classified 2043 ( 25/50 ) for use in plenums and air handling systems.
Finish
Western gold
Approvals
Complies with Federal Specification A-A-1192A (Type 61) and Manufacturers’ Standardization Society ANSI/MSS SP-58 (Type 61) which supersedes ANSI/MSS SP-69.
Ordering
Specify figure number
