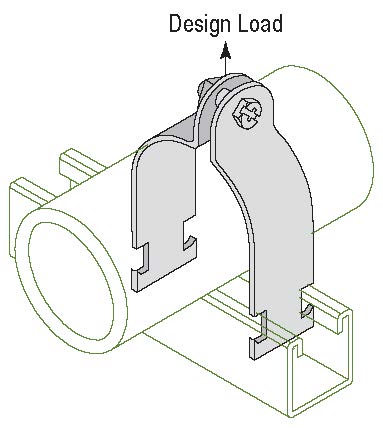

Part No. O.D. Size A Nom. Pipe Size Overall Height Width of Clamp Length of  Base Max. Rec. Load
X  lbs		 Max. Rec. Load
X  kN		 Max. Rec. Load
Y  lbs		 Max. Rec. Load
Y  kN		 Max. Rec. Load
Z  lbs		 Max. Rec. Load
Z  kN		 Wt. Each
lbs		 Wt. Each
kg
011N014 .675  (17.15) 3/8  (10) 1.59  (40.39) .075  (1.91) 1.07  (27.18) 75 (0.33) 75 (0.33) 600 (2.67) 0.17 (0.08)
014N018 .840  (21.34) 1/2  (15) 1.91  (48.51) .075  (1.91) 1.45  (36.83) 75 (0.33) 75 (0.33) 600 (2.67) 0.21 (0.10)
017N022 1.050 (26.67) 3/4  (20) 2.16  (54.86) .119  (3.02) 1.79 (45.47) 75 (0.33) 75 (0.33) 600 (2.67) 0.31 (0.14)
021N026 1.315  (33.40) 1  (25) 2.75  (69.85) .119  (3.02) 2.22  (56.39) 75 (0.33) 75 (0.33) 600 (2.67) 0.43 (0.20)
027N032 1.660  (42.16) 1 1/4 (32) 3.03  (76.96) .119  (3.02) 2.47  (62.74) 125 (0.56) 125 (0.56) 800 (3.56) 0.48 (0.22)
030N034 1.900  (48.26) 1 1/2  (40) 3.28  (83.31) .119  (3.02) 2.47  (62.74) 125 (0.56) 125 (0.56) 800 (3.56) 0.52 (0.24)
038N044 2.375  (60.33) 2 (50) 3.78  (96.01) .119  (3.02) 3.22  (81.79) 125 (0.56) 125 (0.56) 800 (3.56) 0.61 (0.28)
046N052 2.875  (73.03) 2 1/2  (65) 4.27  (108.46) .119  (3.02) 3.72  (94.49) 125 (0.56) 125 (0.56) 800 (3.56) 0.62 (0.28)
056N062 3.500  (88.90) 3  (80) 4.91  (124.71) .119  (3.02) 4.36  (110.74) 150 (0.67) 200 (0.89) 1000 (4.45) 0.72 (0.33)
064N072 4.00  (101.60) 3 1/2  (90) 5.53  (140.46) .119  (3.02) 4.97  (126.24) 150 (0.67) 200 (0.89) 1000 (4.45) 0.88 (0.40)
072N080 4.500  (114.30) 4  (100) 6.03  (153.16) .135 (3.43) 5.47  (138.94) 150 (0.67) 200 (0.89) 1000 (4.45) 0.95 (0.43)
089N096 5.563  (141.30) 5  (125) 7.03 (178.56) .135 (3.43) 6.47  (164.34) 150 (0.67) 200 (0.89) 1000 (4.45) 1.22 (0.55)
