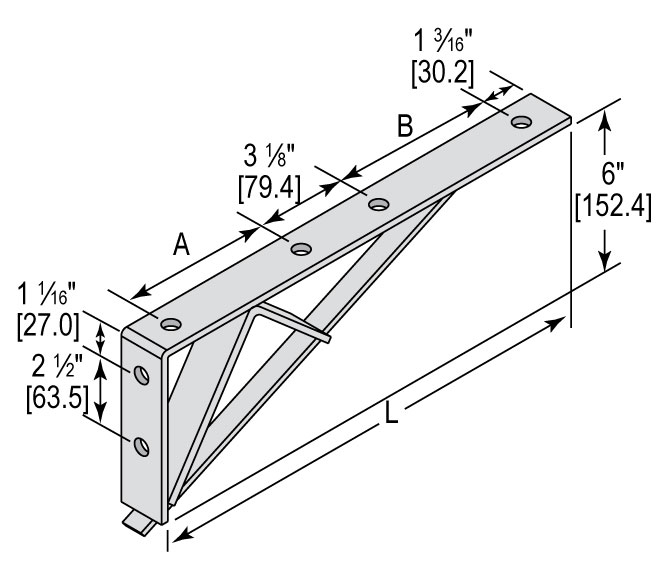

| Part No. | Wt – lbs | Length in (mm) | A in (mm) | B in (mm) | Uniform Load lbs (kN) |
| G1777EG | 3.81 | 16 1/2 (419.1) | 5 1/4 (133.3) | 5 3/4 (146.0) | 1,200 (5.34) |
Load shown for bracket mounted on 12 gauge channel
Measurements
Material is 1-5/8″ [41.3] wide x 1/4″ [6.3] thick unless specified. Holes are 13/16″ [20.6] from edge on 1-7/8″ [47.6] centers unless specified.
Material
Available Finishes / Materials: EG — Electro-galvanized YC — Yellow chromate HD — Hot dipped galvanized S4 — 304 stainless steel S6 — 316 stainless steel
Finish
Standard Finish: EG
Technical Details
