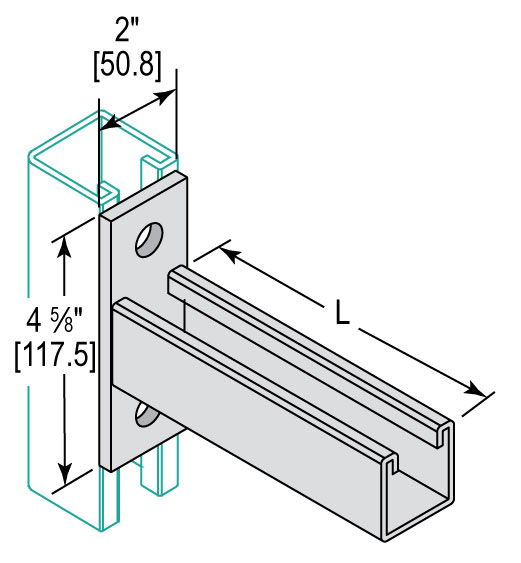

| Part No. | Wt – lbs | Length in (mm) | Uniform Load lbs (kN) |
| G2944EG | 1.85 | 6 (152.4) | 1,250 (5.56) |
| G2945EG | 2.36 | 12 (304.8) | 750 (3.34) |
| G2946EG | 3.28 | 18 (457.2) | 500 (2.22) |
| G2946EG | 4.49 | 24 (609.6) | 350 (1.56) |
Load shown for bracket mounted on 12 gauge channel
Measurements
Material is 1-5/8″ [41.3] wide x 1/4″ [6.3] thick unless specified. Holes are 13/16″ [20.6] from edge on 1-7/8″ [47.6] centers unless specified.
Material
Available Finishes / Materials: EG — Electro-galvanized YC — Yellow chromate HD — Hot dipped galvanized S4 — 304 stainless steel S6 — 316 stainless steel
Finish
Standard Finish: EG
Technical Details
